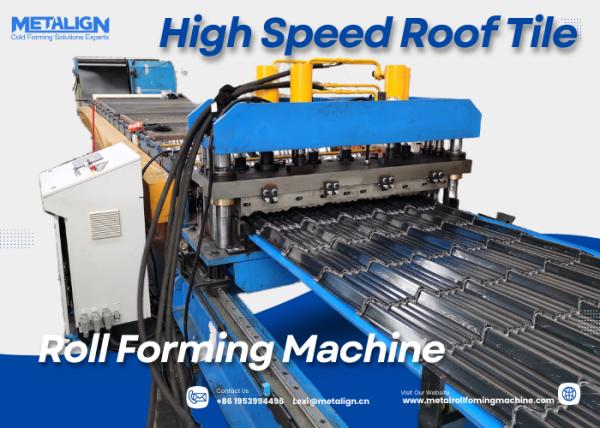

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Name: Flying Punching Chain Drive Roof Tile Roll Forming Machine
Brand: METALIGN
Price: 1 USD

Flying Punching Chain Drive Roof Tile Roll Forming Machine Manufactures

Brand Name : METALIGN

Model Number : RT

Certification : CE,ISO,etc

Place of Origin : CHINA

MOQ : 1 set

Price : USD1,000-700,000. Based on customization.

Payment Terms : L/C,T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Industrial plastic film wrapping, secured with steel wire.

Product name : Continuous Roofing Tile Roll Forming Production Line With Wall Frame

Key words : Metal Ridge Cap Roll Forming Machine/Ridge Cap Roll Former/Galvanized Ridge Cap Machine/Ridge Cap Making Machine/Steel Ridge Cap Production Line

Profile : Roof tile

Application : Metal Roofing Ridge/Steel Roof Connection Cover/Building Roof Flashing/Waterproof Roof Join Cover

Material type : PPGI/PPGL/GI/GL Steel Coils

Material thickness : 0.3-0.8mm

Forming speed : 15-20m/min

Main motor power : 5.5Kw

Forming stations : 18

Driving system : Chain

Frame structure : Wall panel

Shaft diameter : 70mm

Machine condition : Brand new

Shaft material : #45 steel quenched 55-60℃

Roller material : High grade #45 steel , surface with hard chrome

Display language : English/Spanish/Russian/French,etc, customizable

Control technique : PLC+Touch Screen

Delivery time : 30 days

Contact Now

1. Overview

1.1 Production Line

This production line is ideal for clients in the roofing materials industry seeking high-efficiency, decorative tile panels. It supports continuous production with flying punching and cutting, providing precision, automation, and consistent panel quality for medium to high-volume manufacturing.

Flying Punching Chain Drive Roof Tile Roll Forming Machine

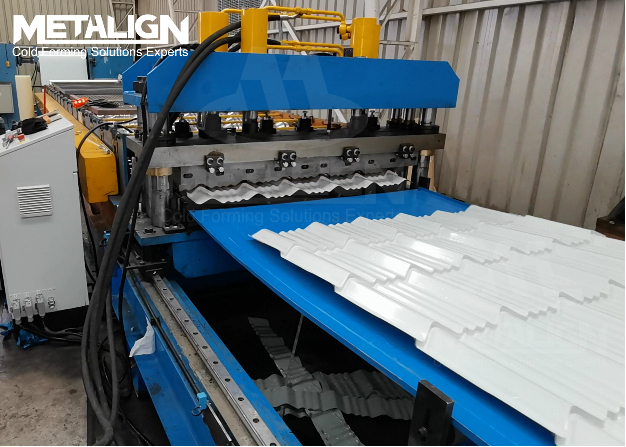

Tile Shape Punching

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Cutter

Flying Punching Chain Drive Roof Tile Roll Forming Machine

Auto Stacker

1.2 Profile
The roof tile panel is made of galvanized or prepainted steel, typically 0.3–0.8mm thick. It features a curved, overlapping tile shape with decorative embossing. The panel is used for high-end metal roofing, offering a classic look with modern durability for residential or light commercial buildings.
Material: Galvanized Steel / PPGI / Aluminum	Thickness: 0.3-0.8mm
Yield strength: 200 - 350 Mpa	Tensil stress: 200 -350 Mpa

1.3 Production Process
Flow Chart: Hydraulic Decoiler → Entry Guide → Roll Former → Hydraulic Punch → Hydraulic Cutter → Run-out Table

Process: After stable decoiling and guiding, the sheet is roll-formed into a tile shape, followed by dynamic hydraulic punching and flying cut. This ensures continuous, high-speed production without pausing, ideal for decorative roofing panels requiring accurate patterns and smooth cuts.

1.4 Key Focus
Accurate tile embossing with hydraulic synchronized motion
Ideal for large-volume tile roof panel manufacturing
Dynamic flying punching and cutting for uninterrupted production

2. Technical Parameters

2.1 Decoiler
Structure	Double-support
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T/7T/10T, customizable
Coil Width	1250mm, customizable
Inner Diameter	Φ450 – Φ550 mm
Out Diameter	1500 mm
Model	DC-MU1

2.2 Optional Upgrade: Decoiler

Motorized Decoiler	Stand structure decoiler, motorized or hydraulic	Hydraulic decoiler with loading car

2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller	Adujust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

2.4 Roll Forming Machine
Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished(CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

2.5 Optional Upgrade: Cover

Mounted On The Inside: No Cover Required	Solid Cover For Chain	Mesh Safety Cover

2.6 Cutter
Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 – 62°

2.7 Product Collection
Solution 1	Run-out table	Solution 2	Auto stacker
Power Type	Non-powered, mainly manual handling	Power Type	Motorized, 3Kw
Dimension	Length 4m, customizable	Dimension	Length 4m-6m, customizable

2.8 PLC Control Cabinet
PLC Brand	Delta, customizable	Power Supply	380v, 50HZ, 3Phase (It depends on customer requirement)
Encoder Brand	Omron, customizable	Language	Chinese + English, Spanish, French, Russian, etc
Touch Screen	MCGS, customizable	Operation type	Manual /auto two-type switch
Hanging Arm Type	Saving Space	Standing Type	greater component integration and flexible positioning
Hanging-Arm Control Box		Standing Control Box

2.9 Hydraulic Power Unit (HPU)
Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

2.10 Analysis
7T Hydraulic Decoiler	Supports large coil, ensures long-time continuous feed
7T Hydraulic Decoiler	Equipped with hydraulic expansion and pressing arm
Guiding Device	Centers material, ensures correct alignment into roll former
Roll Former	Forms tile profile with wall-plate machine base for stability
	Chain drive system, cost-effective and durable
	Protective cover ensures operator safety
Flying Hydraulic Punching	Synchronized motion avoids stopping, improves efficiency
	Customizable mold depth and shape
	Matches line speed, ensures precise length cutting
	Clean cut, no deformation at panel edge
Out Table	Supports finished panels and allows manual collection

3. Production Line Components

Component	Quantity
Decoiler	1 set
Roll Former	1 set
Hydraulic Cutter	1 set
Out Table	2 sets
PLC Cabinet	1 set
Hydraulic Station	1 set

4. Customization Options

We offer customization of the tile pattern mold (depth, curve, pitch), punching die design, servo or hydraulic tracking systems, chain drive strength, roller layout, and embossing precision. The line can also be tailored for different coil widths, tile lengths, and optional auto stacking systems.
